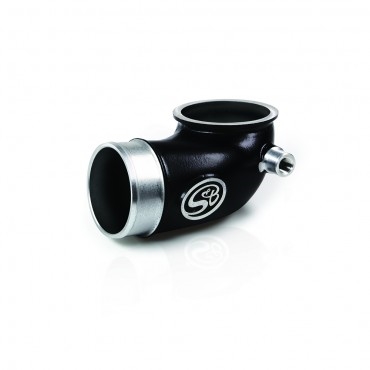

S&B Turbo Inlet Upgrade Kit For 2004.5-2005 LLY Duramax Diesel

S&B Turbo Inlet Upgrade Kit For 2004.5-2005 LLY Duramax Diesel



MSRP $229.00
Our Price: $199.00
Savings: $30.00


Availability:: Usually Ships in 24 Hours
Product Code: SB-76-1006B
Qty:

Features Technical Specs

Features
  • The S&B LLY Turbo mouth piece is used to replace and upgrade the restrictive factory turbo mouth piece. The purpose is to create an intake with a free flowing path for the air that feeds the turbocharger. The result is cooler air in the intake system, and therefore a more efficient engine. The S&B turbo mouth piece will offer 78.6% more improvement over stock. The S&B aftermarket mouth piece also removes the resonator from underneath the hood by not having a hole in the mouth piece for the resonator to sit on.

    This is a pretty easy installation for the home mechanic. The undersized factory turbo inlet creates a pressure drop in the flow of intake air supply that feeds the turbo. When the intake air at this low pressure is compressed by the turbo the intake air becomes super heated. The intake air enters the intercooler which absorbs some of the heat and then passes this heat to the radiator that is positioned directly behind the intercooler. The cooling efficiency of the radiator is reduced by the hotter than necessary airflow passing from the intercooler and through to the radiator. Since the intake air is as hot as it is the combustion temperature is higher than necessary.
